Product Details:
|
| Signal Interface: | Parallel Data (4-bit) , 12 Pins | Panel Model: | LM320194 |
|---|---|---|---|
| Panel Brand: | SHARP | Resolution: | 320×240 , QVGA |
| Display Mode: | STN | Panel Size: | 5.7 Inch |
| Display Colors: | Monochrome | Active Area: | 115.17×86.37 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

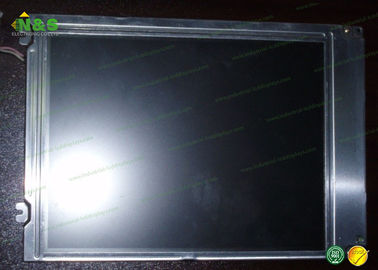

320*240, 5.7 inch Sharp LCD Panel lm320194 without touch STN-LCD , Panel
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.
General Features
| Panel Brand : | SHARP |
| Panel Model : | LM320194 |
| Panel Type : | STN-LCD , Panel |
| Panel Size : | 5.7 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN |
| Active Area : | 115.17×86.37 mm |
| Display Colors : | Monochrome |
| Signal Interface : | Parallel Data (4-bit) , 12 pins |
| Input Voltage : | 5.0V (Typ.) |
Mechanical Features
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.360×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | TBD |
| Active Area : | 115.17×86.37 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
Display Mode : STN
Display Color : Monochrome
Signal Category : Parallel Data
Signal Class : Parallel Data (4-bit)
Input Voltage for Panel : 5.0V (Typ.)
Interface Type : FPC
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
TFT LCD Module series:
1. Our standard TFT LCD module size:
1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.
2. Our TFT LCD module brands:
NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.
3. Transflective / sun readable TFT LCD.
4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.
