Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 240(RGB)×320 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transflective | Brightness: | 100 Cd/m² (Typ.) |
| Contrast Ratio: | 70:1 (Typ.)(Transmissive) 4:1 (Typ.)(Reflective) | Display Colors: | 262K (6-bit) |
| Lamp Type: | WLED | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 50 Pins |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Sharp LCD Panel LQ035Q7DH01 3.5 inch for Handheld Product panel
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q7DH01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 65×86.2×4.2 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 70:1 (Typ.)(Transmissive) 4:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 50 pins |
| Input Voltage : | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 45g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.4×75.2 mm (H×V) |
| Outline Dimension : | 65×86.2 mm (H×V) |
| Outline Depth : | 4.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

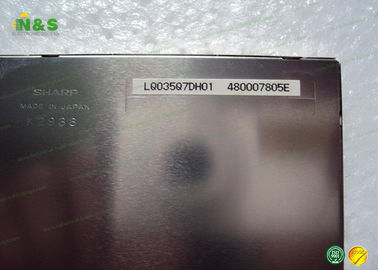

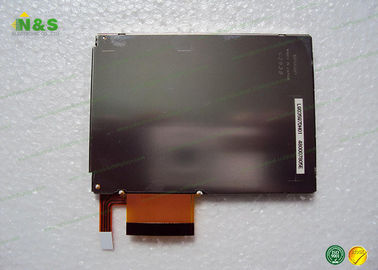

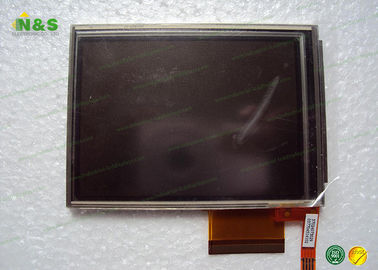

Details Pictures for Sharp LCD Panel LQ035Q7DH01
