Product Details:
|
| Panel Model: | LQ064A5CG01 | Panel Size: | 6.4 Inch |
|---|---|---|---|
| Touch Panel: | Without | Outline Dimension: | 153×122 Mm (H×V) |
| Dot Pitch: | 0.090×0.417 Mm (H×V) | Weight: | 365±10g |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Full color SHARP LQ064A5CG01 6.4 inch Flat Rectangle Display
Technical parameters for SHARP LQ064A5CG01 :
| Panel Size : | 6.4 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 83 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.417 mm (H×V) |
| Pixel Pitch : | 0.270×0.417 mm (H×V) |
| Weight : | 365±10g |
| Active Area : | 129.6×97.6 mm (H×V) |
| Outline Dimension : | 153×122 mm (H×V) |
| Outline Depth : | 21.0 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Product Advantages:
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.
Specifications:
custom original industrail lcd display
1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size
Descriptions for SHARP LQ064A5CG01:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |

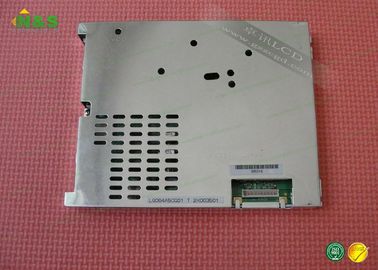

Details Pictures for SHARP LQ064A5CG01:
