Product Details:
|
| Brightness: | 400 Cd/m² (Typ.) | Active Area: | 70.56×52.92 Mm |
|---|---|---|---|
| Pixel Density: | 115 PPI | Contrast Ratio: | 300 : 1 |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

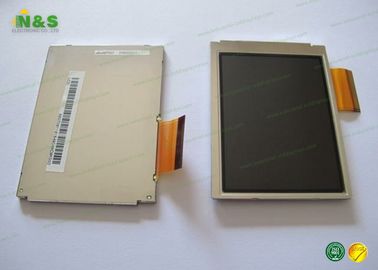

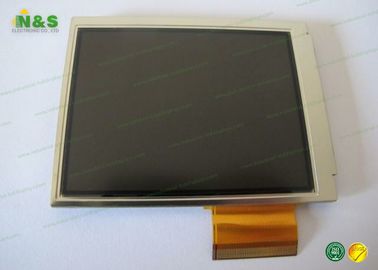

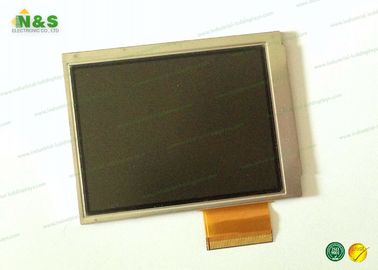

LQ035Q7DH07 SHARP 53.64×71.52 mm 3.5 inch a-Si TFT-LCD , Panel
Product details:
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q7DH07 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 65×86.2×3.4 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 80:1 (Typ.)(Transmissive) 3:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
Company information:
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
Parameter for LCD panel:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 48% NTSC (CIE1931) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.
Our Services
1. Sample all in one computer is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
