Product Details:
|
| Panel Type: | FSTN-LCD | Size: | 7.2 Inch |
|---|---|---|---|
| Outline: | 200.5×141 Mm | Display Colors: | Monochrome |
| Input Voltage: | 3.3V (Typ.) | ||
| High Light: | 7.2 Inch Sharp LCD Display Panels,Symmetry Sharp LCD Display Panels,LM64P101 sharp lcd panel |
||

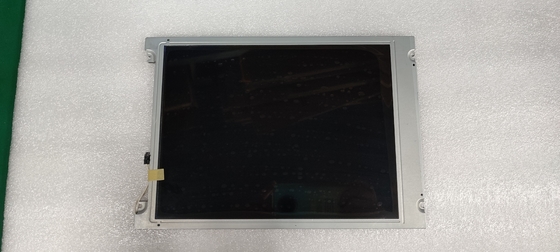

LM64P101 Information
| Panel Model | LM64P101 |
|---|---|
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,7.2 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Active Area | 147.18×110.38 mm |
| Outline | 200.5×141 mm |
| Surface | |
| Contrast Ratio | 18:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 200/150 (Typ.)(Tr/Td) |
| Viewing Angle | 25/25/20/10 (Typ.)(CR≥4) (L/R/U/D) |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | Parallel Data (4-bit) , 15 pins |
| Input Voltage | 3.3V (Typ.) |
| Panel Model | LM64P101 |
|---|---|
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,7.2 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -25 ~ 60 °C |
| Dot Resolution | 640×480 (VGA) |
|---|---|
| Pixel Configuration | Rectangle |
| Pixel Density | 110 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.23×0.23 mm (H×V) |
| Pixel Pitch | 0.23×0.23 mm (H×V) |
| Weight | 260g (Typ.) |
| Active Area | 147.18×110.38 mm (H×V) |
| Bezel Area | 153.0×115.4 mm (H×V) |
| Outline Dimension | 200.5×141 mm (H×V) |
| Outline Depth | 7.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
