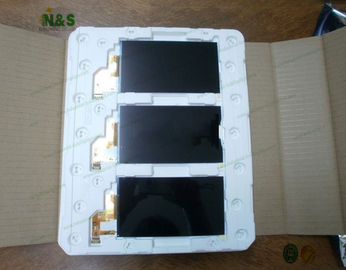

LS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application

LS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application

    • LS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application
    • LS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application
  • LS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application

    Product Details:

    Place of Origin: Japan
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LS063K3SX01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LS063K3SX01 Panel Brand: SHARP
    Panel Type: CG-Silicon Active Area: 78.3×139.2 Mm
    Outline: 81.7×146.95×1.62 Mm Surface Clear Surface: Clear

    LS063K3SX01 SHARP CG-Silicon ,6.3 inch, 720×1280 for Industrial Application

    LS063K3SX01 Basic Information

    Panel Model LS063K3SX01
    Panel Brand SHARP
    Descrition CG-Silicon ,6.3 inch, 720×1280
    Panel Type CG-Silicon
    Operating Temperature -20 ~ 60 °C
    Storage Temperature -30 ~ 70 °C





    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    LS063K3SX01 Mechanical Features

    Dot Resolution 720(RGB)×1280 (WXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 233 PPI
    Aspect Ratio 9:16 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.03625×0.10875 mm (H×V)
    Pixel Pitch 0.10875×0.10875 mm (H×V)
    Weight 42.6g (Typ.)
    Surface Clear
    Active Area 78.3×139.2 mm (H×V)
    Outline Dimension 81.7×146.95 mm (H×V)
    Outline Depth 1.61±0.1 mm
    Landscape or Portrait Portrait type
    Touch Panel Without



    Our Service

    1. Small quantity also can be provided.

    2. New models can be updated fast.
    3. We have strict QC team to make sure all products are qualified before delivery.
    4. Warranty promise

    5. Sourcing line for different hard disks for different brands.

    LS063K3SX01 Optical Features

    Display Mode Normally Black, Transmissive
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Color Gamut 74% NTSC (CIE1931)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.300; Wy:0.320
    White Variation 1.25 (Max.)(9 points)
    Sunlight Readable N



    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    LS063K3SX01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No
    Driver IC Built-in NT35596



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    TM020GYH31 Tianma 2.0" 176×220
    TM018GYH03 Tianma 1.8" 176×220
    TM017FYH44 Tianma 1.8" 128×160
    TM017FYH43 Tianma 1.8" 128×160
    TM017FYH42 Tianma 1.8" 128×160
    TM017FYH41 Tianma 1.8" 128×160
    TM022GYS22 Tianma 2.2" 176×220
    TM055JYSP01 Tianma 5.5" 720×1280



    We also have other industrial LCD panels, pls contact to us for the further information



    LS063K3SX01   picturesLS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial ApplicationLS063K3SX01 Sharp Lcd Screen Replacement 6.3 Inch 720×1280 Industrial Application
