LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging

LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging

    • LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging
    • LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging
  • LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging

    Product Details:

    Place of Origin: KOREA
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LS037V7DW05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LS037V7DW05 Panel Brand: SHARP
    Descrition: 480×640 Panel Type: CG-Silicon
    Active Area: 56.16×74.88 Mm Outline: 65×89.2 Mm

    LS037V7DW05 SHARP CG-Silicon ,3.7 inch, 480×640 for Medical Imaging

    LS037V7DW05 Basic Information

    Panel Model LS037V7DW05
    Panel Brand SHARP
    Descrition CG-Silicon ,3.7 inch, 480×640
    Panel Type CG-Silicon
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C
    Remarks VGA/QVGA selectable



    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

    LS037V7DW05 Mechanical Features

    Dot Resolution 480(RGB)×640 (VGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 217 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.039×0.117 mm (H×V)
    Pixel Pitch 0.117×0.117 mm (H×V)
    Weight 50g (Typ.)
    Surface Antiglare
    Active Area 56.16×74.88 mm (H×V)
    Outline Dimension 65×89.2 mm (H×V)
    Outline Depth 4.4 (Typ.) mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)



    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    1. Function Inspection

    Make sure all functions are 100% tested ok

    LS037V7DW05 Optical Features

    Display Mode ASV, Normally Black, Transflective
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 900 : 1 (Typ.) (Transmissive)
    Display Color 262K/16.7M (6-bit / 8-bit)
    Color Gamut 50% NTSC (CIE1931)
    Response Time 15/20 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.317; Wy:0.336
    White Variation 1.67 (Max.)(9 points)
    Reflectance Ratio 2/4% (Min./Typ.)
    Sunlight Readable Y



    The reasons you choose us

    1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

    ard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    LS037V7DW05 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (U/D, L/R)





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LM64C35P SHARP 10.4" 640×480
    LM64P30 SHARP 9.4" 640×480
    LM072QCAT50 SHARP 7.2" 320×240
    LM100SS1T522 SHARP 10.0" 800×600
    LM6Q401 SHARP 5.5" 320×240
    LM12S49 SHARP 12.1" 800×600
    LM057QC1T08 SHARP 5.7" 320×240
    LM64P101R SHARP 7.2" 640×480

    We also have other industrial LCD panels, pls contact to us for the further information

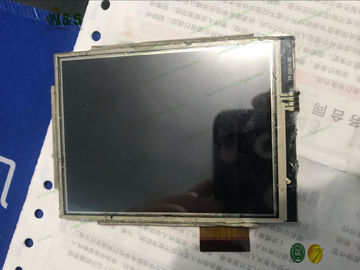

    LS037V7DW05  pictures

    LS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical ImagingLS037V7DW05 Sharp LCD Panel CG- Silicon 3.7 Inch 480×640 For Medical Imaging
