Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

    • Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel
    • Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel
  • Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel

    Product Details:

    Place of Origin: Japan
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LQ055W1GC01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LQ055W1GC01 Panel Brand: SHARP
    Descrition: 1024×600 Panel Type: A-Si TFT-LCD
    Active Area: 119.808×70.2 Mm Outline: 130.2×81.15 Mm

    LQ055W1GC01 SHARP a-Si TFT-LCD ,5.5 inch, 1024×600 for Industrial Application

    LQ055W1GC01 Basic Information

    Panel Model LQ055W1GC01
    Panel Brand SHARP
    Descrition a-Si TFT-LCD ,5.5 inch, 1024×600
    Panel Type a-Si TFT-LCD
    Operating Temperature 0 ~ 60 °C
    Storage Temperature -20 ~ 70 °C







    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    LQ055W1GC01 Mechanical Features

    Dot Resolution 1024(RGB)×600 (WSVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 217 PPI
    Aspect Ratio 17:10 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.039×0.117 mm (H×V)
    Pixel Pitch 0.117×0.117 mm (H×V)
    Weight 32/36g (Typ./Max.)
    Surface Clear, Hard coating (2H)
    Active Area 119.808×70.2 mm (H×V)
    Outline Dimension 130.2×81.15 mm (H×V)
    Outline Depth 1.95/2.15 (Typ./Max.) mm
    Landscape or Portrait Landscape type
    Touch Panel Without



    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    LQ055W1GC01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 25 (Typ.)(Tr+Td)
    Viewing Angle 60/50/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 9 o'clock
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.10/1.30 (Typ./Max.)(5 points)
    Sunlight Readable N



    The reasons you choose us

    1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

    ard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    LQ055W1GC01 Electronics Feature

    Vertical Frequency 60Hz









    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LM64C21P SHARP 8.0" 640×480
    LM8V33 SHARP 7.7" 640×480
    LM8V311 SHARP 7.7" 640×480
    LM8V31 SHARP 7.7" 640×480
    LM8V302 SHARP 7.7" 640×480
    LM8V301 SHARP 7.7" 640×480
    LM8V30 SHARP 7.7" 640×480
    LM64P89L SHARP 10.4" 640×480

    We also have other industrial LCD panels, pls contact to us for the further information

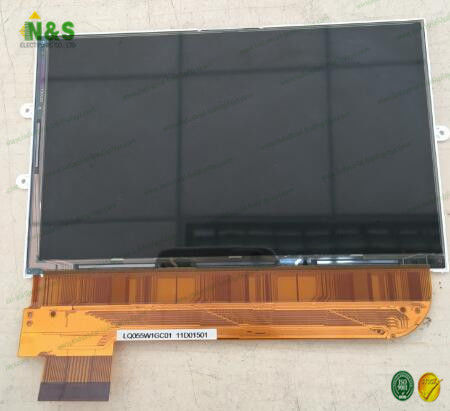

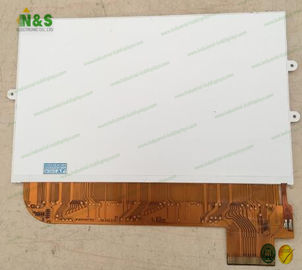

    LQ055W1GC01  pictures

    Industrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe PixelIndustrial Application Sharp LCD Screen Replacement LQ055W1GC01 RGB Vertical Stripe Pixel
