New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

    • New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²
    • New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²
    • New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²
  • New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²

    Product Details:

    Place of Origin: Japan
    Brand Name: LQ035Q7DH07
    Certification: ISO9001
    Model Number: SHARP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LQ035Q7DH07 Panel Brand: SHARP
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Active Area: 53.64×71.52 Mm Outline: 65×86.2×3.4 Mm

    New and original LQ035Q7DH07 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application

    LQ035Q7DH07 Basic Information

    Panel Model LQ035Q7DH07
    Panel Brand SHARP
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -10 ~ 70 °C
    Storage Temperature -25 ~ 70 °C
    Remarks AD-TFT (Advanced TFT), 2 in 1 FPC, Not for New Design





    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,
    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.

    LQ035Q7DH07 Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 34g (Typ.)
    Surface Hard coating (3H)
    Active Area 53.64×71.52 mm (H×V)
    Bezel Area 57.4×75.2 mm (H×V)
    Outline Dimension 65×86.2 mm (H×V)
    Outline Depth 3.2±0.2 mm
    Landscape or Portrait Portrait type
    Touch Panel Without



    1. Samples charge: According to the model. Pls contact us to get details.

    2. Samples time:1 day forstock models

    Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

    Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.

    LQ035Q7DH07 Optical Features

    Display Mode TN, Normally White, Transflective
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 3:1 (Typ.) (Reflective)
    Display Color 262K (6-bit)
    Response Time 30/50 (Typ.)(Tr/Td)
    Viewing Angle 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.300; Wy:0.330
    Reflectance Ratio 2.5/4.0% (Min./Typ.)
    Sunlight Readable Y



    Why do you choose us?

    • Quick response to clients' enquiries within 24hrs.

    • More than 6-year experience in LCD screen field and professional team communication team.

    •Value quality and long-term cooperation to reach win-win relationship.

    LQ035Q7DH07 Electronics Feature

    Reverse Scan Yes (U/D, L/R)





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LM10V332R SHARP 10.4" 640×480
    LM80C20P SHARP 11.3" 800×600
    LM8V302R SHARP 7.7" 640×480
    LM5Q321 SHARP 5.0" 320×240
    LM15X80 SHARP 15.0" 1024×768
    LM14X82 SHARP 13.8" 1024×768
    LM13X31 SHARP 13.0" 1024×768
    LM12X35 SHARP 12.1" 1024×768

    We also have other industrial LCD panels, pls contact to us for the further information

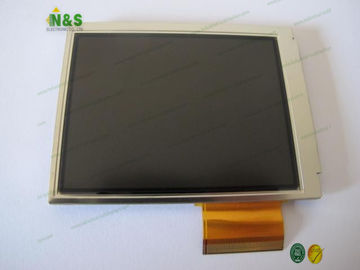

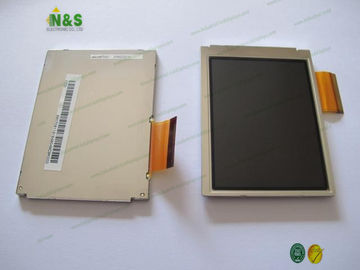

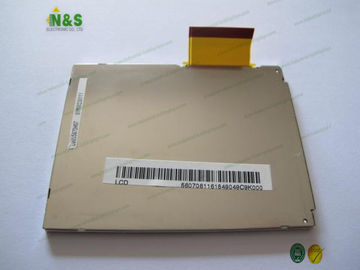

    LQ035Q7DH07  pictures



    New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²New / Original Sharp LCD Display Panel LQ035Q7DH07 A-Si TFT-LCD Brightness 250 Cd/M²
