LQ030B7UB02 Sharp LCD Panel A-Si TFT-LCD 3.0 Inch 240×400 60Hz 156 PPI Pixel Density

LQ030B7UB02 Sharp LCD Panel A-Si TFT-LCD 3.0 Inch 240×400 60Hz 156 PPI Pixel Density

LQ030B7UB02 Sharp LCD Panel A-Si TFT-LCD 3.0 Inch 240×400 60Hz 156 PPI Pixel Density

Product Details:

Place of Origin: Japan
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ030B7UB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: LQ030B7UB02 Panel Brand: SHARP
Descrition: 240×400 Panel Type: A-Si TFT-LCD
Active Area: 38.88×64.8 Mm Outline: 47.28×76.4 Mm

New and original LQ030B7UB02 SHARP a-Si TFT-LCD ,3.0 inch, 240×400 for 60Hz

LQ030B7UB02 Basic Information

Panel Model LQ030B7UB02
Panel Brand SHARP
Descrition a-Si TFT-LCD ,3.0 inch, 240×400
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Remarks Backlight: Serial 1LED 3LED 4LED Optional; AD-TFT (Advanced TFT)



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

LQ030B7UB02 Mechanical Features

Dot Resolution 240(RGB)×400 (WQVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 156 PPI
Aspect Ratio 3:5 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.054×0.162 mm (H×V)
Pixel Pitch 0.162×0.162 mm (H×V)
Weight 24g (Typ.)
Surface Hard coating (3H), Antireflection
Active Area 38.88×64.8 mm (H×V)
Outline Dimension 47.28×76.4 mm (H×V)
Outline Depth 3.25±0.2 mm
Landscape or Portrait Portrait type
Touch Panel Without



Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

LQ030B7UB02 Optical Features

Display Mode TN, Normally White, Transflective
Brightness 150 cd/m² (Typ.)
Contrast Ratio 15:1 (Typ.) (Reflective)
Display Color 65K/262K ()
Response Time 30/30 (Typ.)(Tr/Td)
Viewing Angle 60/60/65/50 (Typ.)(CR≥2) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity Wx:0.310; Wy:0.340
Reflectance Ratio 7/10% (Min./Typ.)
Sunlight Readable Y



We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

LQ030B7UB02 Electronics Feature

Reverse Scan Yes (U/D, L/R)







Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM057QC1T03 SHARP 5.7" 320×240
LM057QC1T02 SHARP 5.7" 320×240
LM057QC1T01R SHARP 5.7" 320×240
LM100SS1T523 SHARP 10.0" 800×600
LM100SS1T52 SHARP 10.0" 800×600
LM121SS1T709 SHARP 12.1" 800×600
LM121SS1T509 SHARP 12.1" 800×600
LM121SS1T53 SHARP 12.1" 800×600

We also have other industrial LCD panels, pls contact to us for the further information

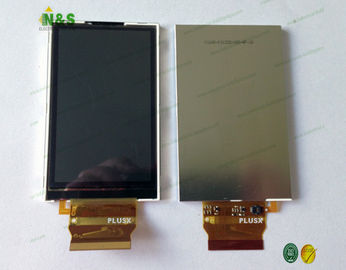

LQ030B7UB02  pictures
