Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface

Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface

    • Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface
    • Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface
  • Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface

    Product Details:

    Place of Origin: KOREA
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LQ035Q7DH06

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LQ035Q7DH06 Panel Brand: SHARP
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Active Area: 53.64×71.52 Mm Outline: 65×86.2×4.2 Mm

    LQ035Q7DH06 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz

    LQ035Q7DH06 Basic Information

    Panel Model LQ035Q7DH06
    Panel Brand SHARP
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -10 ~ 70 °C
    Storage Temperature -25 ~ 70 °C
    Remarks AD-TFT (Advanced TFT), 2 in 1 FPC



    Packaging & Delivery

    · Delivery Lead Time :2~3 weeks

    · Minimum Order :1 pcs LCD Panel

    · Supply Ability :100 PCS / Per Day

    LQ035Q7DH06 Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 45g (Typ.)
    Surface Hard coating (2H)
    Active Area 53.64×71.52 mm (H×V)
    Bezel Area 57.4×75.2 mm (H×V)
    Outline Dimension 65×86.2 mm (H×V)
    Outline Depth 4.0±0.2 mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)



    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.

    LQ035Q7DH06 Optical Features

    Display Mode TN, Normally White, Transflective
    Brightness 225 cd/m² (Typ.)
    Contrast Ratio 3:1 (Typ.) (Reflective)
    Display Color 262K (6-bit)
    Response Time 30/50 (Typ.)(Tr/Td)
    Viewing Angle 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.300; Wy:0.330
    White Variation 1.25/1.43 (Typ./Max.)(9 points)
    Reflectance Ratio 2.5/4.0% (Min./Typ.)
    Sunlight Readable Y



    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

    LQ035Q7DH06 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (U/D, L/R)





    Below are our other LCD panels stock for your easy reference

    Panel Model Brand Size Resolution
    LM8M64R SHARP 8.1" 640×240
    LM32K102 SHARP 4.7" 320×240
    LM12S469 SHARP 12.1" 800×600
    LM64P60 SHARP 10.4" 640×480
    LM64C35 SHARP 10.4" 640×480
    LM64C08P SHARP 9.4" 640×480
    LM64C031 SHARP 9.4" 640×480
    LM32K07 SHARP 5.7" 320×240

    We also have other industrial LCD panels, pls contact to us for the further information

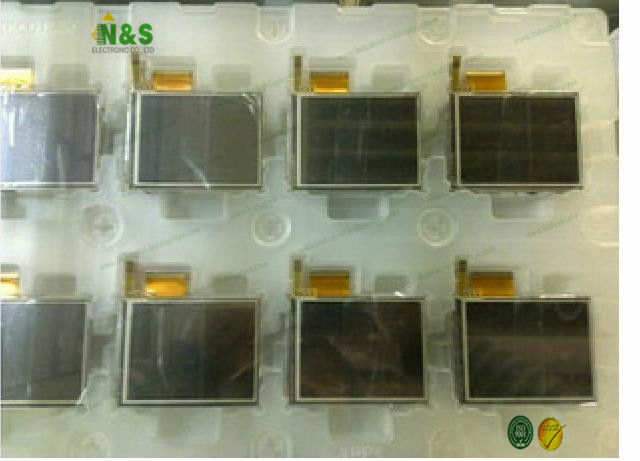

    LQ035Q7DH06 pictures



    Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating SurfaceFlat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface
