3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05

3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05

    • 3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05
    • 3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05
  • 3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05

    Product Details:

    Place of Origin: KOREA
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LS037V7DD05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LS037V7DD05 Panel Brand: SHARP
    Descrition: 480×640 Panel Type: CG-Silicon
    Active Area: 56.16×74.88 Mm Outline: 65×90.4 Mm

    LS037V7DD05 SHARP CG-Silicon ,3.7 inch, 480×640 for 60Hz



    LS037V7DD05 Basic Information

    Panel Model LS037V7DD05
    Panel Brand SHARP
    Descrition CG-Silicon ,3.7 inch, 480×640
    Panel Type CG-Silicon
    Operating Temperature -10 ~ 60 °C
    Storage Temperature -20 ~ 70 °C
    Remarks AD-TFT (Advanced TFT), selective in VGA (480H×640V)or QVGA(240H×320V)



    Why do you choose us?
    • Quick response to clients' enquiries within 24hrs.
    • More than 6-year experience in LCD screen field and professional team communication team.
    •Value quality and long-term cooperation to reach win-win relationship.

    LS037V7DD05 Mechanical Features

    Dot Resolution 480(RGB)×640 (VGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 217 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.039×0.117 mm (H×V)
    Pixel Pitch 0.117×0.117 mm (H×V)
    Weight TBD
    Surface Hard coating (3H)
    Active Area 56.16×74.88 mm (H×V)
    Outline Dimension 65×90.4 mm (H×V)
    Outline Depth 4.3 (Typ.) mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)



    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    LS037V7DD05 Optical Features

    Display Mode TN, Normally White, Transflective
    Brightness 130 cd/m² (Typ.)
    Contrast Ratio 2.5:1 (Typ.) (Reflective)
    Display Color 262K (6-bit)
    Color Gamut 22% NTSC (CIE1931)
    Response Time 20/20 (Typ.)(Tr/Td)
    Viewing Angle 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.300; Wy:0.310
    White Variation 1.25/1.43 (Typ./Max.)(9 points)
    Reflectance Ratio 4/6% (Min./Typ.)
    Sunlight Readable Y

    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    LS037V7DD05 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (U/D, L/R)
    Time Controller (T-CON) Need external T-CON



    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LM80C032 SHARP 10.4" 800×600
    LM80C20PA SHARP 11.3" 800×600
    LM80C219 SHARP 11.3" 800×600
    LM64P723 SHARP 9.4" 640×480
    LM64P828 SHARP 9.4" 640×480
    LM64P825 SHARP 9.4" 640×480
    LM64P824 SHARP 9.4" 640×480
    LM64P822 SHARP 9.4" 640×480



    We also have other industrial LCD panels, pls contact to us for the further information

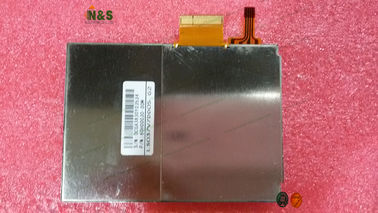

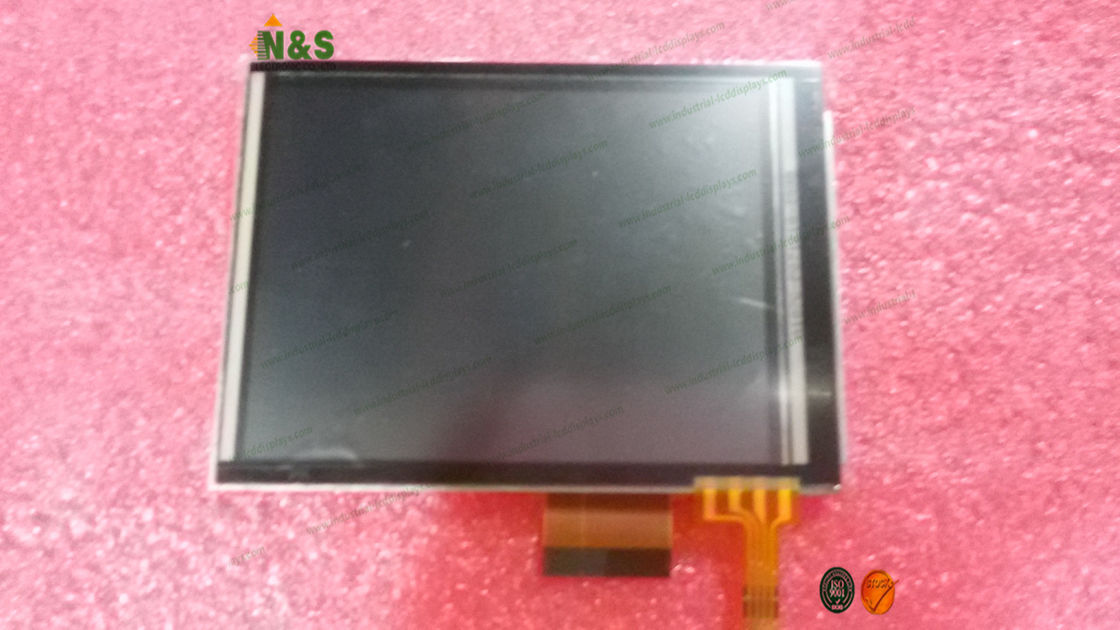

    LS037V7DD05 pictures

    3.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD053.7 Inch Sharp LCD Panel , Sharp LCD Replacement Screen CG- Silicon LS037V7DD05
