Product Details:
|
| Aspect Ratio: | 3:5 (H:V) | Panel Size: | 5.5 Inch |
|---|---|---|---|
| Resolution: | 1536(RGB)×2560 | Brightness: | 450 Cd/m² (Typ.) |
| Frequency: | 60Hz | Pixel Density: | 546 PPI |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

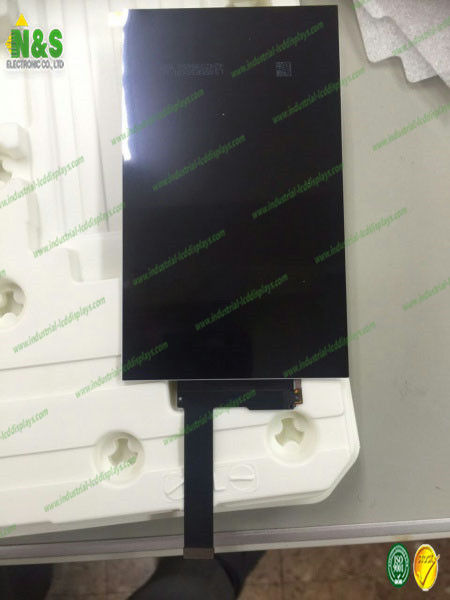

Normally Black LS055R3SX01 5.5 inch high resolution 1536×2560 Frequency 60Hz Brightness 450 cd/m² (Typ.)
LS055R3SX01 (G) Basic Information
| Panel Model | LS055R3SX01 (G) |
| Panel Brand | SHARP |
| Descrition | CG-Silicon ,5.5 inch, 1536×2560 |
| Panel Type | CG-Silicon |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
LS055R3SX01 (G) Mechanical Features
| Dot Resolution | 1536(RGB)×2560 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 546 PPI |
| Aspect Ratio | 3:5 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0155×0.0465 mm (H×V) |
| Pixel Pitch | 0.0465×0.0465 mm (H×V) |
| Weight | 21.1g |
| Active Area | 71.424×119.04 mm (H×V) |
| Outline Dimension | 73.824×126.44 mm (H×V) |
| Outline Depth | 1.30±0.1 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
