Product Details:
|
| Panel Type: | A-Si TFT-LCD | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 304.1×228.1 Mm | Outline: | 326.5×253.5×10.1 Mm |
| Resolution: | 1024×768 | Panel Size: | 15.0 Inch |
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

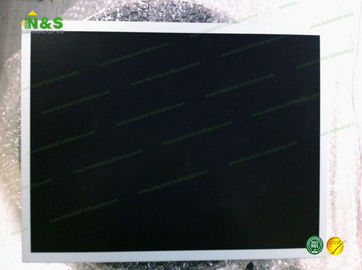

SHARP LCD Displays LQ150X1LG93 15.0 inch 304.1×228.1 mm Active Area 326.5×253.5×10.1 mm Outline
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LQ150X1LG93 Basic Information
| Panel Model | LQ150X1LG93 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
LQ150X1LG93 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 950g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 9.6±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LQ150X1LG93 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.305; Wy:0.325 |
| White Variation | 1.33 (Max.)(5 points) |
| Sunlight Readable | N |
