Product Details:
|
| Panel Type: | EL | Panel Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 640×400 | Active Area: | 191.9×119.9 Mm |
| Outline: | 246×158 Mm | ||
| High Light: | sharp lcd display panels,sharp lcd screen |
||

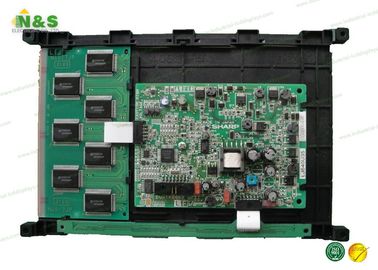

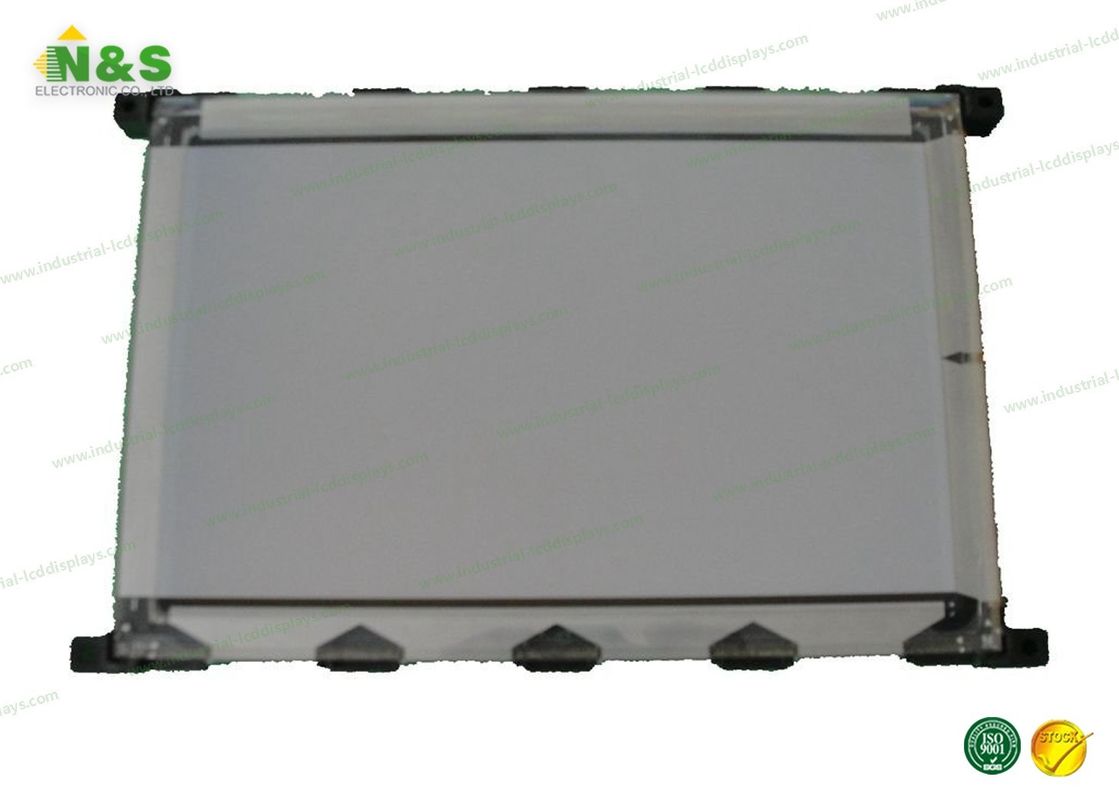

LJ640U35 Basic Information
| Panel Model | LJ640U35 |
| Panel Brand | SHARP |
| Descrition | EL ,8.9 inch, 640×400 |
| Panel Type | EL |
| Operating Temperature | -5 ~ 55 °C |
| Storage Temperature | -40 ~ 80 °C |
LJ640U35 Mechanical Features
| Dot Resolution | 640×400 |
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 390g |
| Active Area | 191.9×119.9 mm (H×V) |
| Outline Dimension | 246×158 mm (H×V) |
| Outline Depth | 26.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LJ640U35 Optical Features
| Brightness | 115 cd/m² (Typ.) |
| Display Color | Monochrome () |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
