Product Details:
|
| Panel Type: | STN-LCD | Resolution: | 320×240 |
|---|---|---|---|
| Panel Size: | 4.7 Inch | Active Area: | 95.98×71.98 Mm |
| Outline: | 145×93 Mm | ||
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

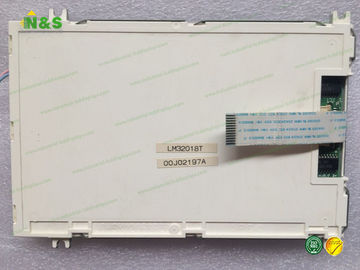

Blue mode LM32018T 4.7 inch, 320×240 Active Area 95.98×71.98 mm Outline 145×93 mm new amd original
LM32018T Basic Information
| Panel Model | LM32018T |
| Panel Brand | SHARP |
| Descrition | STN-LCD ,4.7 inch, 320×240 |
| Panel Type | STN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -25 ~ 60 °C |
LM32018T Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 115g |
| Active Area | 95.98×71.98 mm (H×V) |
| Bezel Area | 100.0×75.0 mm (H×V) |
| Outline Dimension | 145×93 mm (H×V) |
| Outline Depth | 7.5 (Max.) mm |
| Holes & Brackets | Face mounting holes |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LM32018T Optical Features
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 6 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 220/215 (Typ.)(Tr/Td) |
| Viewing Angle | 25/25/15/25 (Typ.)(CR≥4) (L/R/U/D) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
