Product Details:
|
| Panel Type: | FSTN-LCD | Panel Size: | 6.0 Inch |
|---|---|---|---|
| Resolution: | 640×480 (VGA) | Aspect Ratio: | 4:3 (H:V) |
| Outline Depth: | 5.3 (Typ.) Mm | Brightness: | 60 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

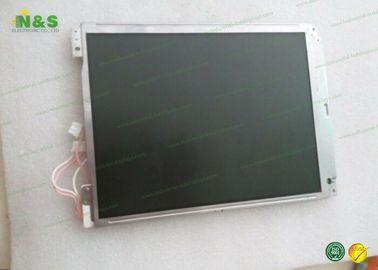

Black/White mode LM64K111 FSTN-LCD ,6.0 inch, 640×480 121.58×91.18 mm Active Area,Aspect Ratio 4:3 (H:V)
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
LM64K111 Basic Information
| Panel Model | LM64K111 |
| Panel Brand | SHARP |
| Descrition | FSTN-LCD ,6.0 inch, 640×480 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 45 °C |
| Storage Temperature | -25 ~ 65 °C |
LM64K111 Optical Features
| Display Mode | STN, Black/White mode, Transflective |
| Brightness | 60 cd/m² (Typ.) |
| Contrast Ratio | 8:1 (Typ.) (Reflective) |
| Display Color | Monochrome () |
| Sunlight Readable | Y |
LM64K111 Mechanical Features
| Dot Resolution | 640×480 (VGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 133 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.190×0.190 mm (H×V) |
| Pixel Pitch | 0.190×0.190 mm (H×V) |
| Weight | 145g (Typ.) |
| Active Area | 121.58×91.18 mm (H×V) |
| Bezel Area | 130.6×100.2 mm (H×V) |
| Outline Dimension | 167.7×122.8 mm (H×V) |
| Outline Depth | 5.3 (Typ.) mm |
| Holes & Brackets | Face mounting holes (2-Φ2.4, 2-R1.2) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
