Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 5.5 Inch |
|---|---|---|---|
| Resolution: | 1024*600 | Outline: | 130.2×81.15 Mm |
| Surface: | Clear, Hard Coating (2H) | Frequency: | 60Hz |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

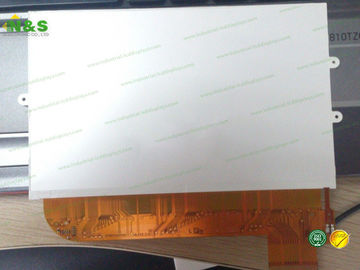

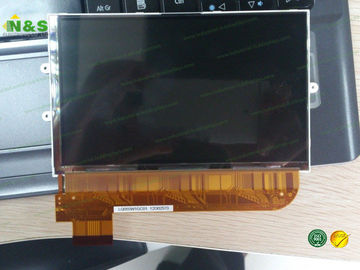

Normally White LQ055W1GC01 TFT LCD Module 5.5 inch,high resolution 1024×600 Frequency 60Hz
LQ055W1GC01 Basic Information
| Panel Model | LQ055W1GC01 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,5.5 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
LQ055W1GC01 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 217 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.039×0.117 mm (H×V) |
| Pixel Pitch | 0.117×0.117 mm (H×V) |
| Weight | 32/36g (Typ./Max.) |
| Surface | Clear, Hard coating (2H) |
| Active Area | 119.808×70.2 mm (H×V) |
| Outline Dimension | 130.2×81.15 mm (H×V) |
| Outline Depth | 1.95/2.15 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LQ055W1GC01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 60/50/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 9 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.10/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
