Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 70.08×52.56 Mm |
| High Light: | lcd display white screen,lcd panel screen |
||
TIANMA TM035KDH03 3.5 inch Normally White with 70.08×52.56 mm Active Area
TM035KDH03 Quick Details:
| Panel Brand : | TIANMA |
| Panel Model : | TM035KDH03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.08×52.56 mm |
| Outline : | 76.9×63.9×3.35 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantages
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
| TM240128ABCWVBYD | Tianma | 4.8" | 240×128 |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 30.0g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.88×55.36 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

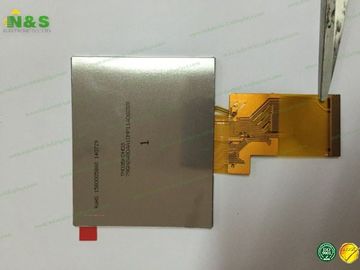

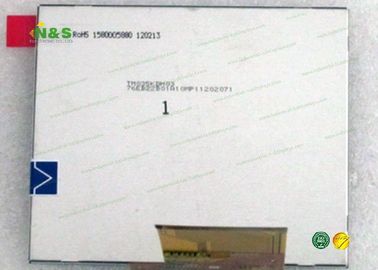

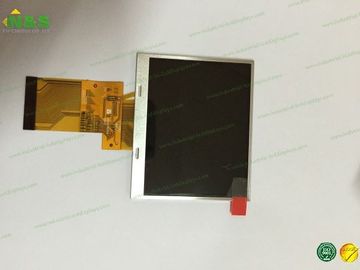

TM035KDH03 Picture
