TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging
TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

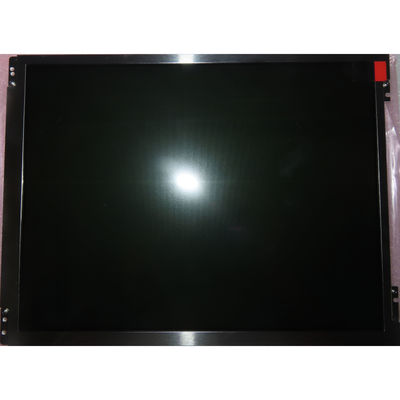

Large Image :  TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

Product Details:
Place of Origin: korea
Brand Name: TIANMA
Model Number: TM104SDH01
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: pls contact us
Packaging Details: standard Packaging
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 200

TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

Description
Panel Brand: TIANMA Panel Model: TM104SDH01
Panel Size: 10.4" Panel Type: A-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA, 96PPI Touch Screen: Without
High Light:

TM104SDH01

,

800×600 Tianma LCD Displays

,

10.4 Inch Tianma LCD Displays

TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

TIANMA TM104SDH01 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.088×0.264 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.264×0.264 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
215.0(H) × 162.0(V)
Outline Dim.(mm)
236(H) × 176.9(V)
Depth(mm)
5.6±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Spec :
Weight
288g
Treatment
Antiglare, Hard coating (3H)



  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  •


TIANMA TM104SDH01 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
10/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.309; Wy:0.334
Display Colors
262K (6-bit)
Color Temperature
6655K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
