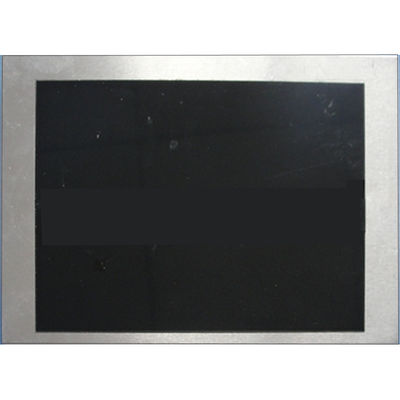

Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00

Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00
Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00

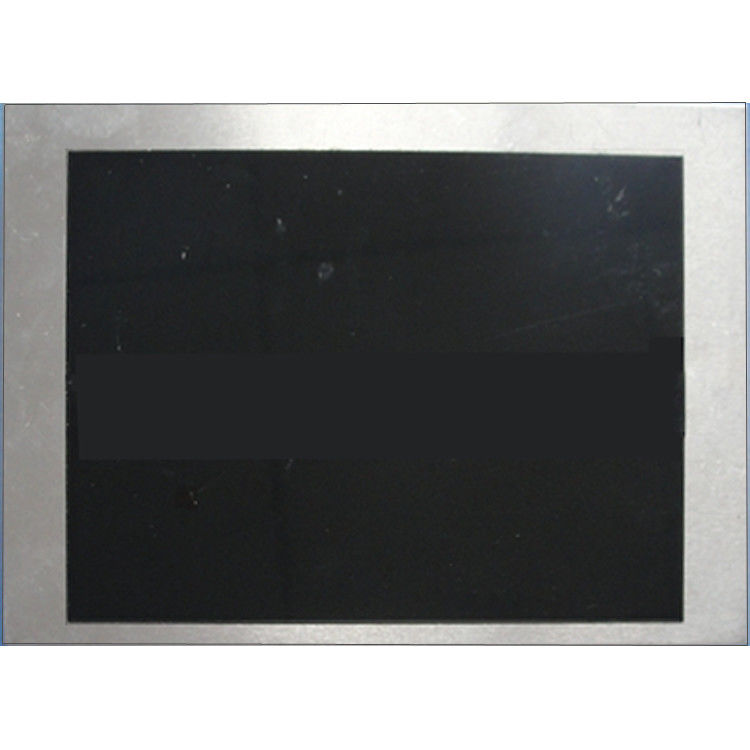

Large Image :  Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00

Product Details:
Place of Origin: korea
Brand Name: TIANMA
Model Number: TM057KDH01-00
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: pls contact us
Packaging Details: standard Packaging
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 600

Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00

Description
Brand: TIANMA Model: TM057KDH01-00
Diagonal Size: 5.7 Inch Type: A-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 [QVGA] 70PPI Touch Panel: Without
High Light:

5.7 Inch Tianma LCD Displays

,

LCM Tianma LCD Displays

,

TM057KDH01-00

Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00

TIANMA TM057KDH01-00 Mechanical Details

Pixel Features :
Resolution
320(RGB)×240, QVGA
Dot Pitch(mm)
0.120×0.360 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.360×0.360 (H×V) [70PPI]
Mechanical Size :
Active Area(mm)
115.2(H) × 86.4(V)
Bezel Area(mm)
118.2(H) × 89.4(V)
Outline Dim.(mm)
144(H) × 104.6(V)
Depth(mm)
12.8 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting poles (4-Φ2.6)
Other Spec :
Weight
160g (Typ.)
Treatment
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240 TM057KDH01-00 0 Back to Top


TIANMA TM057KDH01-00 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/70/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
20 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.324; Wy:0.362
Display Colors
262K (6-bit)
Color Temperature
5814K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
54%
sRGB
73% coverage
Adobe RGB
56% coverage
DCI-P3
55% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
