Product Details:
|
| Active Area: | 210.4×157.8 Mm | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Outline: | 238.6×175.8×7 Mm | Brightness: | 470 Cd/m² (Typ.) |
| High Light: | auo display panel,auo lcd screen |
||

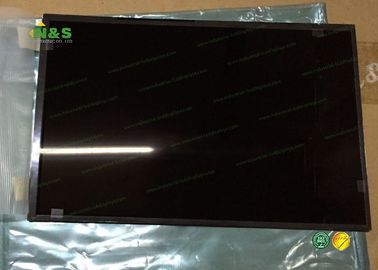

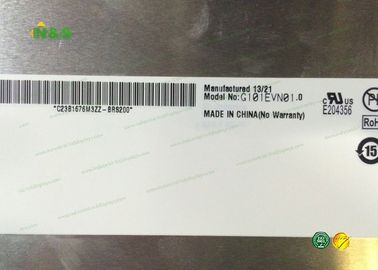

Normally Black G101EVN01.0 10.4 inch with 210.4×157.8 mm Active Area for Industrial Application panel
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
G101EVN01.0 Characteristic
| Panel Brand : | AUO |
| Panel Model : | G104XVN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | PSA, Normally Black, Transmissive |
| Active Area : | 210.4×157.8 mm |
| Outline : | 238.6×175.8×7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 470 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 strings WLED Embedded (LED Driver) |

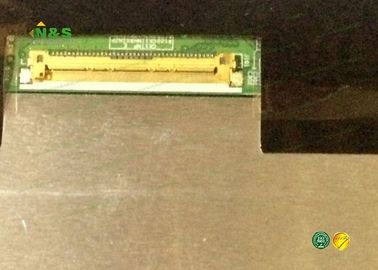

| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
AUO G104XVN01.0 Mechanical Features
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 295g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 210.4×157.8 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 238.6×175.8 mm (H×V) |
| Outline Depth : | 6.5±0.5 mm |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
