LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch

LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch
LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch

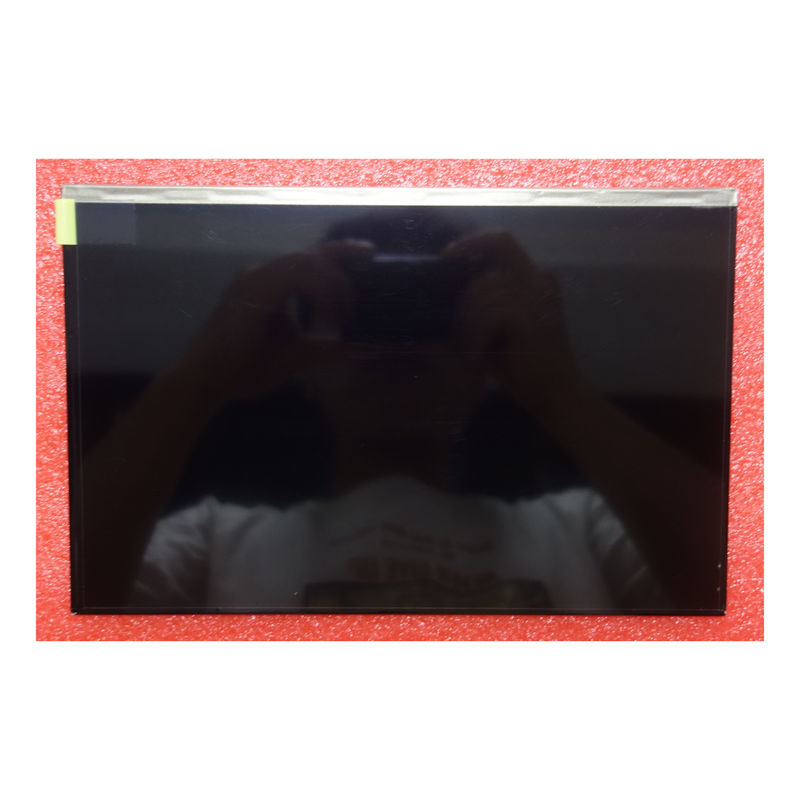

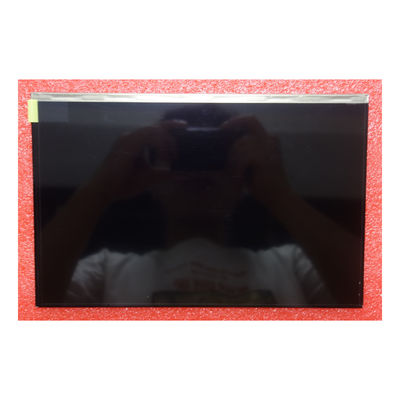

Large Image :  LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G101UAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch

Description
Manufacturer: AUO Model Name: G101UAN01.0
Screen Size: 10.1 Inch Screen Type: Screen TypeLCM , A-Si TFT-LCD
Pixel Number: 1920(RGB)×1200 (WUXGA) 224PPI Touchscreen: Without
High Light:

1920×1200 Industrial Lcd Screen

,

LCM Industrial Lcd Screen

,

G101UAN01.0

LCM 1920×1200 Industrial Lcd Screen G101UAN01.0 AUO 10.1 Inch

AUO G101UAN01.0 Mechanical Features

Panel Size : 10.1 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1200, WUXGA RGB Vertical Stripe 0.038×0.113 mm 0.113×0.113 mm [224PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
216.81×135.5 mm - 228.22×147.3 mm 5.35 (Typ.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 16:10 (W : H) Landscape type
Fixation : Without
Other Features : Panel Cover Weight Surface
- 140g (Max.) Hard coating, Antireflection
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  •


AUO G101UAN01.0 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
380 cd/m² (Typ.) AHVA, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
52% 71% 54%
DCI-P3 Coverage Rec.2020 Coverage Remarks
54% 39% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.43 (Max.)(5 points)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
