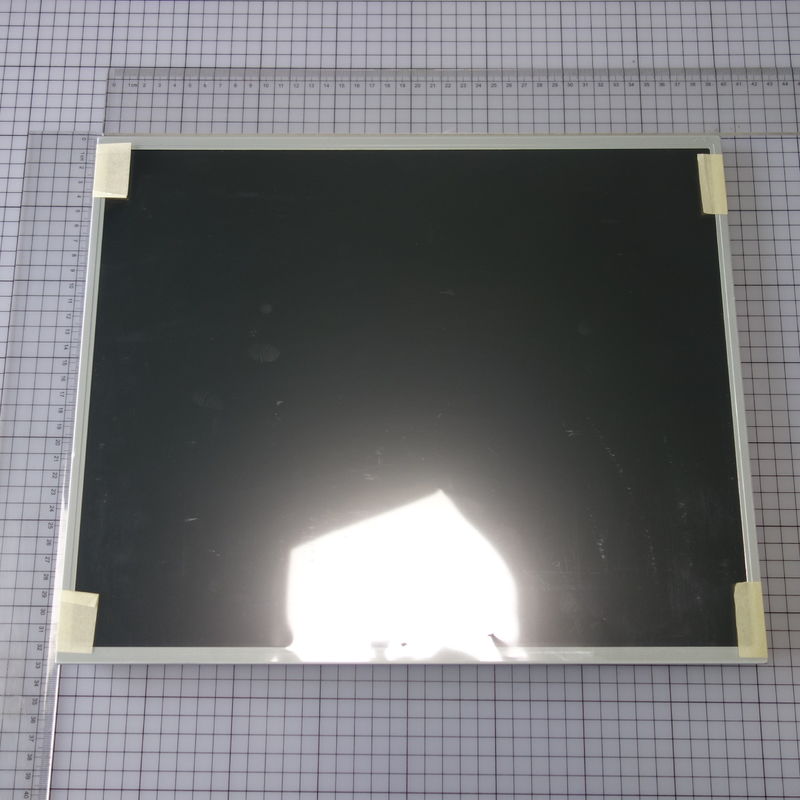

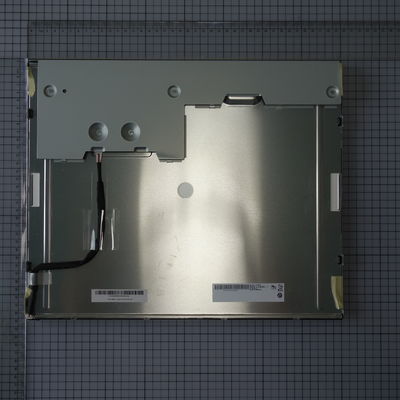

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel
Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Large Image :  Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G190EG02 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel

Description
Brand: AUO Model: G190EG02 V1
Diagonal Size: 19.0 Inch Pixel Format: 1280(RGB)×1024 [SXGA] 86PPI
Type: A-Si TFT-LCD, LCM Weight: 1.75Kgs (Typ.)
Luminance: 300 Cd/m² (Typ.) Interface Type: LVDS (2 Ch, 8-bit) , 30 Pins Connector
Light Source: WLED , 50K Hours , With LED Driver Environment: Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

19 Inch AUO LCD Panel

,

G190EG02 V1

,

G190EG02 V1 LCD Panel

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel



Description Of AUO LCD Panel

G190EG02 V1 (Alias: G190EG02 V.1) is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of G190EG02 V1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.



Quick Details

Type a-Si TFT-LCD , LCM
Model G190EG02 V1
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 60 °C
Weight 1.75Kgs (Typ.)
Color Temperature 6485K





Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

M185XTN01.3 CELL AUO 6.0"
M185XTN01.3 CELL AUO 10.1"
M185XTN01.3 CELL AUO 5.0"
M185XTN01.3 CELL AUO 50"
H546DAN01.0 AUO 50"
H546DAN01.0 AUO 19.5"
H347QTN01.0 AUO 3.5"
H515DAN01.0 AUO 5.2"
H499TAN03.1 AUO 5.0"
G150XG03 V3 CELL AUO 15.0"
B080XAN03.1 CELL AUO 7.9"
H572DAN01.2 AUO 5.7"





AUO G190EG02 V1 Mechanical Features

Panel Size : 19.0 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.098×0.294 mm 0.294×0.294 mm [86PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
376.32×301.056 mm 380.32×305.06 mm 396×324 mm 18.9 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 5:4 (W : H) Landscape type -
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Features : Panel Cover Weight Surface
- 1.75Kgs (Typ.) Antiglare







AUO G190EG02 V1 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) MVA, Normally Black, Transmissive 2000:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Typ.)(CR≥10) Symmetry 15/5 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
69% 92% 71%
DCI-P3 Coverage Rec.2020 Coverage Remarks
72% 52% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25/1.33 (Typ./Max.)(9 points) Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel 0





Application Of AUO LCD Panel G190EG02 V1

1. Gaming

2. Marine

3. Medical Equipment

4. ATM

5. Industrial

6. Medical

7. Transport



Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams





FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.







Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel 1Medical Equipment G190EG02 V1 19 Inch AUO LCD Panel 2
