Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1024(2)×768(2) , XGA |
|---|---|---|---|
| Outline: | 279×209×9 Mm | Active Area: | 245.76×184.32 Mm |
| High Light: | auo display panel,auo lcd display |
||

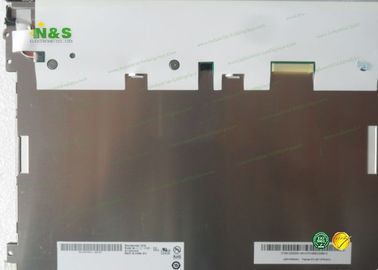

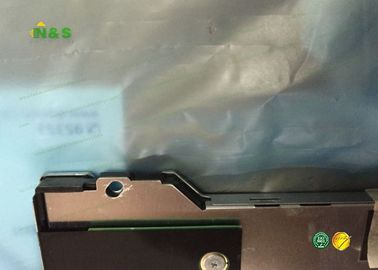

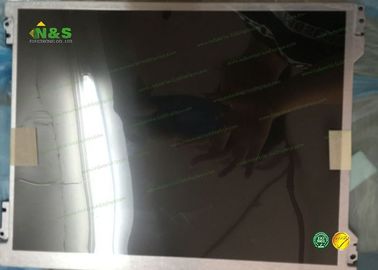

Normally White G121XN01 V0 AUO 12.1 inch with 245.76×184.32 mm Active Area
G121XN01 V0 Characteristic
| Panel Brand : | AUO |
| Panel Model : | G121XN01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(2)×768(2) , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 279×209×9 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 70% |
| Response Time : | 25/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S2P WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
G121XN01 V0 General Features
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(2)×768(2) (XGA) |
| Pixel Configuration : | RGBW Rectangle |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.120 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 495g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 250.8×189.4 mm (H×V) |
| Outline Dimension : | 279×209 mm (H×V) |
| Outline Depth : | 6.0/9.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel |
| Landscape or Portrait : | Landscape type |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
