Product Details:
|
| Dot Resolution: | 800(RGB)×480 (WVGA) | Pixel Density: | 133 PPI |
|---|---|---|---|
| Pixel Pitch: | 0.1905×0.1905 Mm (H×V) | Active Area: | 152.4×91.44 Mm (H×V) |
| High Light: | auo lcd screen,auo lcd display |
||

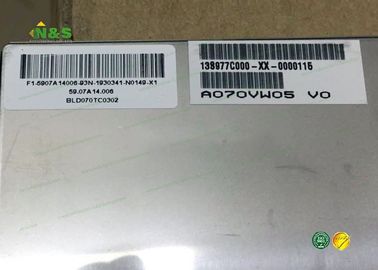

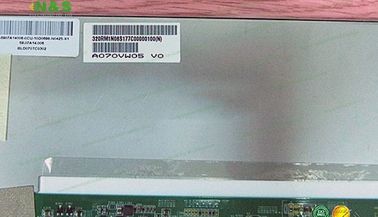

A070VW05 V0 AUO LCD Panel 7.0 Inch Normally White With 152.4×91.44 Mm Active Area
A070VW05 V0 Characteristic
| Panel Brand : | AUO |
| Panel Model : | A070VW05 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×104×5.77 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 375 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/45/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
AUO A070VW05 V0 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 132g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 154.4×93.44 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 4.07/5.77 (Typ./Max.) mm |
| Holes & Brackets : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
