Product Details:
|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 154.08×85.92 Mm | Outline: | 164.9×100×6 Mm |
| SurfaceBrightness: | Antiglare | Brightness: | 350 Cd/m² (Typ.) |
| High Light: | black and white lcd display,lcd panel screen |
||
TM070RDH12 Tianma LCD Displays , 7 inch tft lcd display 154.08×85.92 mm
TM070RDH12 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM070RDH12 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×85.92 mm |
| Outline : | 164.9×100×6 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S7P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.3/10.6/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 154.08×85.92 mm (H×V) |
| Bezel Area : | 157.08×90.1 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
| TM240128ABCWVBYD | Tianma | 4.8" | 240×128 |
| TM24064BBCWVBYD | Tianma | 5.2" | 240×64 |
| TM12864G3CIWGNA1-1 | Tianma | 2.4" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

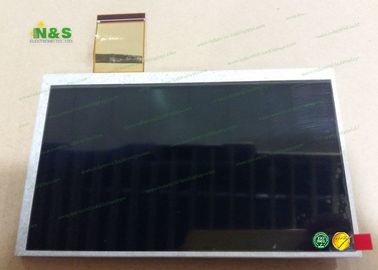

TM070RDH12 Picture
