Product Details:
|
| Dot Resolution: | 1920(RGB)×1080 (FHD) | Pixel Density: | 127 PPI |
|---|---|---|---|
| Aspect Ratio: | 16:9 (H:V) | Weight: | 1.08Kgs (Typ.) |
| High Light: | auo display panel,auo lcd display |
||

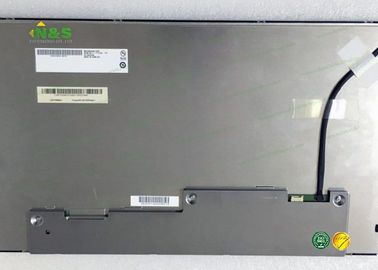

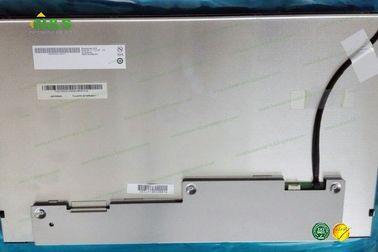

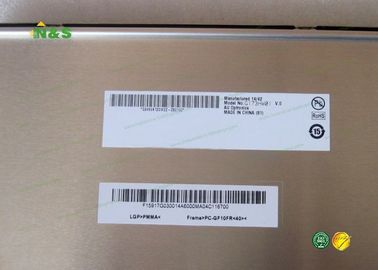

Normally White G173HW01 V0 tft lcd display 17.3 inch with 381.888×214.812 mm Active Area
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
G173HW01 V0 Characteristic
| Panel Brand : | AUO |
| Panel Model : | G173HW01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 17.3 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 381.888×214.812 mm |
| Outline : | 403×240×13 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 37/3 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
AUO G173HW01 V0 Mechanical Features
| Panel Size : | 17.3 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 127 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0663×0.1989 mm (H×V) |
| Pixel Pitch : | 0.1989×0.1989 mm (H×V) |
| Weight : | 1.08Kgs (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 381.888×214.812 mm (H×V) |
| Bezel Area : | 385.09×218.01 mm (H×V) |
| Outline Dimension : | 403×240 mm (H×V) |
| Outline Depth : | 12.5±0.5 mm |
Our Company Strength in LCD Screen Sourcing:
1.ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
