Product Details:
|
| Active Area: | 531.36×298.89 Mm | Outline: | 556×323.2×12 Mm |
|---|---|---|---|
| Surface: | Glare (Haze 0%) | Brightness: | 250 Cd/m² (Typ.) |
| High Light: | auo display panel,auo lcd display |
||
High Brightness M240HW01 VE AUO LCD Panel 24.0 inch with 531.36×298.89 mm Active Area
M240HW01 VE Detail
| Panel Brand : | AUO |
| Panel Model : | M240HW01 VE |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 531.36×298.89 mm |
| Outline : | 556×323.2×12 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 20S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 2.53±0.08Kgs |
| Surface : | Glare (Haze 0%) |
| Active Area : | 531.36×298.89 mm (H×V) |
| Bezel Area : | 535.4×303.0 mm (H×V) |
| Outline Dimension : | 556×323.2 mm (H×V) |
| Outline Depth : | 9.1/12.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H598QAN01.0 | AUO | 6.0" | 1440×2560 |
| T430HVN01.2 CELL | AUO | 43" | 1920×1080 |
| H495TAN01.2 | AUO | 5.0" | 720×1280 |
| T650QVN04.5 CELL | AUO | 65" | 3840×2160 |
| M320DVN01.0 CELL | AUO | 32.0" | 2560×1440 |
| M238HVN01.0 CELL | AUO | 23.8" | 1920×1080 |
| M238HVN01.2 CELL | AUO | 23.8" | 1920×1080 |
| T320XVN02.F CELL | AUO | 31.5" | 1366×768 |
| T430HVN01.6 CELL | AUO | 43" | 1920×1080 |
| B101EAN01.2 CELL | AUO | 10.1" | 1280×800 |
| H497EAN01.0 | AUO | 5.0" | 768×1280 |
| T320XVN02.C CELL | AUO | 31.5" | 1366×768 |
| T320HVN05.8 CELL | AUO | 31.5" | 1920×1080 |

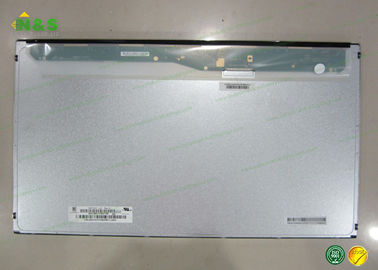

M240HW01 VE AUO LCD Panel Picture
