Product Details:
|
| Panel Size :: | 17.0 Inch | Resolution :: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area :: | 337.92×270.336 Mm | Outline :: | 358.5×296.5×17.5 Mm |
| Brightness :: | 300 Cd/m² (Typ.) | Contrast Ratio :: | 500:1 (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||

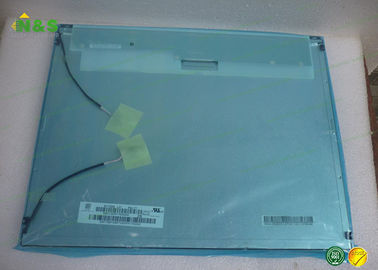

17.0 inch M170EG01 V0 AUO LCM 1280×1024 300 500:1 16.2M Of Desktop Monitor
M170EG01 V0 Information
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 1.90Kgs (Typ.) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.0 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 17.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
Brightness : |
300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 9/3 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max)(9 points) |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 25.8 W(Typ.) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Quality Control:
1. Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2. Function Inspection
Make sure all functions are 100% tested ok
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
