Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 50 Pins |
| High Light: | black and white lcd display,lcd display white screen |
||
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 154.08×85.92 mm (H×V) |
| Bezel Area : | 157.08×89.39 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.326; Wy:0.345 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

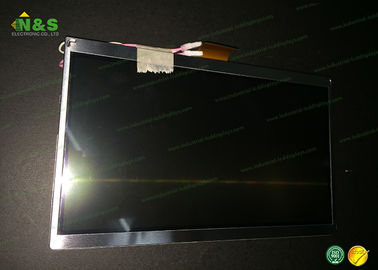

TM070RDHG11 Picture
