Product Details:
|
| Panel Size: | 5inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 45 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 86±4.3g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 101.568×76.176 mm (H×V) |
| Outline Dimension : | 113.6×88.4 mm (H×V) |
| Outline Depth : | 8.1/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM128128A4KFWGWC67-1 | Tianma | 1.45" | 128×128 |
| TM9867DKFWUGWC9 | Tianma | 1.3" | 98×67 |
| TM050XYSA01 | Tianma | 5.0" | 540×960 |
| TM035HYHT1 | Tianma | 3.5" | 320×240 |
| TM080XSZ00 | Tianma | 8.0" | 1280×768 |
| TM046JYHP01 | Tianma | 4.7" | 720×1280 |
| TM014EYH01 | Tianma | 1.45" | 128×128 |
| TM045YYH03 | Tianma | 4.5" | 480×854 |
| TM046JYHP02 | Tianma | 4.7" | 720×1280 |
| TM045YYSA02 | Tianma | 4.5" | 480×854 |
| TM050XYS01 | Tianma | 5.0" | 272×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Dithering) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.306; Wy:0.316 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

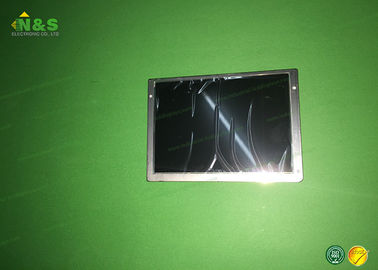

TM050QDH03 Picture
