Product Details:
|
| Panel Size: | 4.7inch | Resolution: | 480(RGB)×272 , WQVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 45 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
| Panel Size : | 4.7 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.072×0.216 mm (H×V) |
| Pixel Pitch : | 0.216×0.216 mm (H×V) |
| Weight : | 57.6g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 103.68×58.752 mm (H×V) |
| Bezel Area : | 106.48×61.55 mm (H×V) |
| Outline Dimension : | 114.3×72.5 mm (H×V) |
| Outline Depth : | 3.15 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.305; Wy:0.315 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM128128A4KFWGWC67-1 | Tianma | 1.45" | 128×128 |
| TM9867DKFWUGWC9 | Tianma | 1.3" | 98×67 |
| TM050XYSA01 | Tianma | 5.0" | 540×960 |
| TM035HYHT1 | Tianma | 3.5" | 320×240 |
| TM080XSZ00 | Tianma | 8.0" | 1280×768 |
| TM046JYHP01 | Tianma | 4.7" | 720×1280 |
| TM014EYH01 | Tianma | 1.45" | 128×128 |
| TM045YYH03 | Tianma | 4.5" | 480×854 |
| TM046JYHP02 | Tianma | 4.7" | 720×1280 |
| TM045YYSA02 | Tianma | 4.5" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

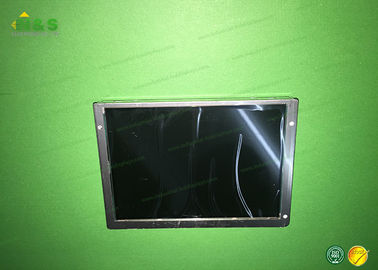

TM047NDH01 Picture
