Product Details:
|
| Panel Size: | 2.7 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Serial RGB (8-bit) + SPI, CCIR601/656 , 39 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
| Panel Size : | 2.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Delta |
| Pixel Density : | 150 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.05625×0.16875 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating |
| Active Area : | 54×40.5 mm (H×V) |
| Bezel Area : | 56.6×43.1 mm (H×V) |
| Outline Dimension : | 63.5×46.6 mm (H×V) |
| Outline Depth : | 2.20±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantages
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/20/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.310 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM128128A4KFWGWC67-1 | Tianma | 1.45" | 128×128 |
| TM9867DKFWUGWC9 | Tianma | 1.3" | 98×67 |
| TM050XYSA01 | Tianma | 5.0" | 540×960 |
| TM035HYHT1 | Tianma | 3.5" | 320×240 |
| TM080XSZ00 | Tianma | 8.0" | 1280×768 |
| TM046JYHP01 | Tianma | 4.7" | 720×1280 |
| TM014EYH01 | Tianma | 1.45" | 128×128 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

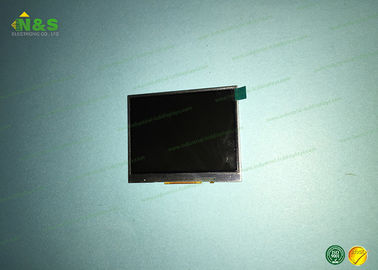

TM027CDH09 Picture
