Product Details:
|
| Panel Size: | 8.0 Inch | Resolution: | 176(RGB)×220 , QCIF+ |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | CPU , 36 Pins |
| High Light: | black and white lcd display,lcd panel screen |
||
| Panel Size : | 2.2 inch |
| Dot Resolution : | 176(RGB)×220 (QCIF+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 4:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 25.0g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 34.848×43.56 mm (H×V) |
| Outline Dimension : | 41.7×56.16 mm (H×V) |
| Outline Depth : | 3.60 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 65K/262K () |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/40/20 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM050XYS01 | Tianma | 5.0" | 272×480 |
| TM035PYS01 | Tianma | 3.5" | 320×480 |
| TM032HYH01 | Tianma | 3.2" | 240×320 |
| TL060JYXP02 | Tianma | 9.0" | 720×1280 |
| TL055VYXP02 | Tianma | 5.5" | 1080×1920 |
| TM024HYH01 | Tianma | 2.4" | 240×320 |
| TS022GAADY02 | Tianma | 2.2" | 176×220 |
| TM057JYHP03 | Tianma | 5.7" | 720×1280 |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

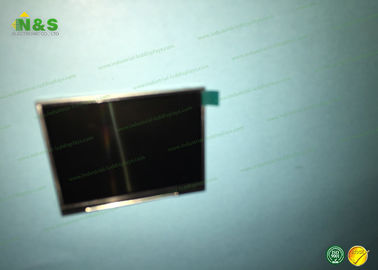

TM022GBH01 Picture
