Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 597.6×336.15 Mm |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Frequency: | 60Hz |
| Input Voltage: | 5.0V (Typ.) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo display panel,auo lcd display |
||
M270HW02 V1 27.0 inch digital lcd display 597.6×336.15 mm Active Area
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
M270HW02 V1 Information
| Panel Brand : | AUO |
| Panel Model : | M270HW02 V1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 27.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 597.6×336.15 mm |
| Outline : | 630×368.2×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 5000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 18S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 27.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10375×0.31125 mm (H×V) |
| Pixel Pitch : | 0.31125×0.31125 mm (H×V) |
| Weight : | 2.80Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 597.6×336.15 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M350DVR01.1 CELL | AUO | 35.0" | 2560×1080 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

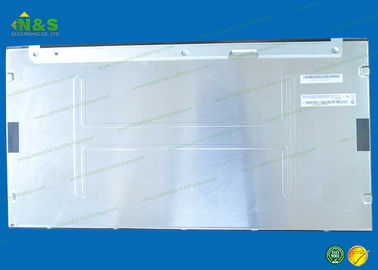

M270HW02 V1 AUO LCD Panel Picture
