Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 2.4 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 36.72×48.96 Mm | Outline: | 41.72×58.46×1.98 Mm |
| High Light: | auo display panel,auo lcd display |
||

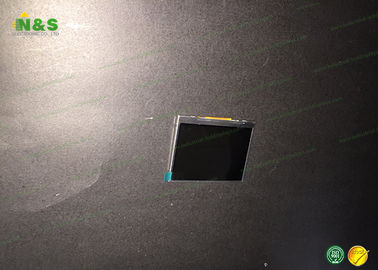

H240QN02 V3 AUO LCD Panel 2.4 inch LCM 240×320 390 600:1 262K WLED CPU
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
H240QN02 V3 Information
| Panel Size : | 2.4 inch | |
| Dot Resolution : | 240(RGB)×320 (QVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 166 PPI | |
| Aspect Ratio : | 3:4 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.051×0.153 mm (H×V) | |
| Pixel Pitch : | 0.153×0.153 mm (H×V) | |
| Surface : | Hard coating (3H) | |
| Active Area : | 36.72×48.96 mm (H×V) | |
| Outline Dimension : | 41.72×58.46 mm (H×V) | |
| Outline Depth : | 1.96±0.02 mm | |
| Landscape or Portrait : | Portrait type | |
| Touch Panel : | Without | |
|
TN, Normally White, Transmissive | |
| Brightness : | 390 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
