Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 480(RGB)×800 , WVGA |
|---|---|---|---|
| Display Mode: | VA, Normally Black, Transmissive | Signal Interface: | MIPI (2 Data Lanes) , 24 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×800 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 270 PPI |
| Aspect Ratio : | 3:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0313×0.0939 mm (H×V) |
| Pixel Pitch : | 0.0939×0.0939 mm (H×V) |
| Weight : | 16.0±0.2g |
| Active Area : | 45.072×75.12 mm (H×V) |
| Outline Dimension : | 49.02×83.52 mm (H×V) |
| Outline Depth : | 1.36 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 320 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Min.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 70% NTSC (CIE1931) | |
| Response Time : | 50/50 (Max.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.43 (Max.)(13 points) | |
| Sunlight Readable : | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

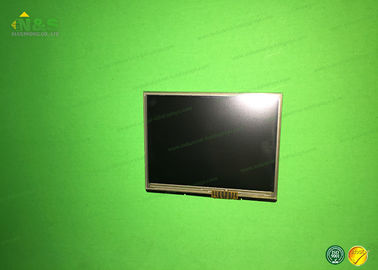

H345VW01 V0 Picture
