Product Details:
|
| Panel Size: | 3.4 Inch | Resolution: | 480(RGB)×854 , FWVGA |
|---|---|---|---|
| Display Mode: | VA, Normally Black, Transmissive | Signal Interface: | MIPI (2 Data Lanes) , 25 Pins |
| High Light: | auo display panel,auo lcd screen |
||
| Panel Size : | 3.4 inch |
| Dot Resolution : | 480(RGB)×854 (FWVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 291 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.029×0.087 mm (H×V) |
| Pixel Pitch : | 0.087×0.087 mm (H×V) |
| Weight : | 8.1±0.15g |
| Active Area : | 41.76×74.298 mm (H×V) |
| Outline Dimension : | 45.16×82.12 mm (H×V) |
| Outline Depth : | 1.30 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 415 cd/m² (Typ.) | |
| Contrast Ratio : | 650 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 60% NTSC (CIE1931) | |
| Response Time : | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |

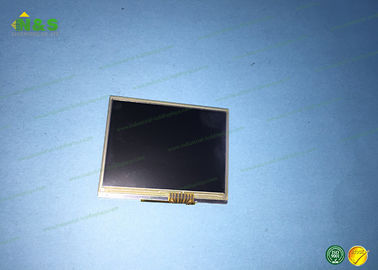

H335VL01 V0 Picture
