Product Details:
|
| Panel Size: | 15.0 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
| Panel Size : | 15.0 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 85 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.099×0.297 mm (H×V) | |
| Pixel Pitch : | 0.297×0.297 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 304.128×228.096 mm (H×V) | |
| Bezel Area : | 307.4×231.3 mm (H×V) | |
| Outline Dimension : | 326.5×253.5 mm (H×V) | |
| Outline Depth : | 12.0 (Max.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Color Gamut : | 65% NTSC (CIE1931) | |
| Response Time : | 8.8/3.5 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/65/55 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : |
|
|
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Packing & Delivery for our LCD Screen Panel Replacements:
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

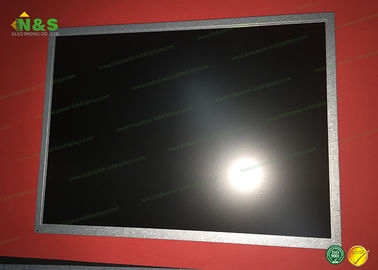

G150XG03 V1 Picture
