Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 473.76×296.1 Mm |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Input Voltage: | 5.0V (Typ.) |
| High Light: | auo display panel,auo lcd display |
||
M220EW01 V0 22.0 inch AUO LCD Panel 473.76×296.1 mm for Desktop Monitor
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
M220EW01 V0 Specification
| Panel Brand : | AUO |
| Panel Model : | M220EW01 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 22.0 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 473.76×296.1 mm |
| Outline : | 493.7×320.1 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.38Kgs |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 16.5 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN05.8 CELL | AUO | 31.5" | 1920×1080 |
| T500HVN07.5 CELL | AUO | 50" | 1920×1080 |
| B070EAN02.0 CELL | AUO | 7.0" | 800×1280 |
| M320QAN01.0 CELL | AUO | 32.0" | 3840×2160 |
| H546TAN02.0 | AUO | 5.5" | 720×1280 |
| H598TAN01.0 | AUO | 6.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

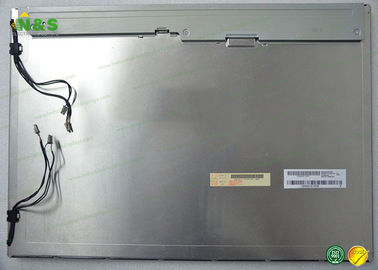

M220EW01 V0 AUO LCD Panel Picture
