Product Details:
|
| Resolution: | 1680(RGB)×1050 , WSXGA+ | Brightness: | 300 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 800:1 (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Active Area: | 433.44×270.9 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | auo display panel,auo lcd screen |
||
AUO 433.44×270.9 mm M201EW02 V0 LCD Panel 20.1 inch for Desktop Monitor
M201EW02 V0 LCD Panel Detail
| Panel Brand : | AUO |
| Panel Model : | M201EW02 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 433.44×270.9 mm |
| Outline : | 459.4×296.4×23.3 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.086×0.258 mm (H×V) |
| Pixel Pitch : | 0.258×0.258 mm (H×V) |
| Weight : | 3.30Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 433.44×270.9 mm (H×V) |
| Bezel Area : | 438.4×275.9 mm (H×V) |
| Outline Dimension : | 459.4×296.4 mm (H×V) |
| Outline Depth : | 18.4/23.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

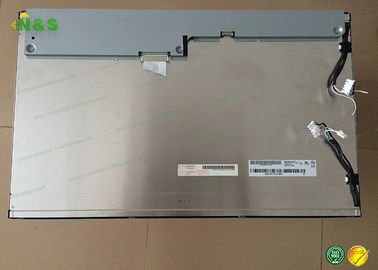

M201EW02 V0 AUO LCD Panel Picture
