Product Details:
|
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Response Time: | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G To G) |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Input Voltage: | 12.0V (Typ.) |
| High Light: | auo display panel,auo lcd display |
||
Normally Black M201EW01 V3 AUO LCD Panel 20.1 inch with 433.44×270.9 mm Active Area
M201EW01 V3 Information
| Panel Brand : | AUO |
| Panel Model : | M201EW01 V3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | AMVA, Normally Black, Transmissive |
| Active Area : | 433.44×270.9 mm |
| Outline : | 459.4×296.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 12.0V (Typ.) |
Packing & Delivery for our LCD Screen Panel Replacements:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.086×0.258 mm (H×V) |
| Pixel Pitch : | 0.258×0.258 mm (H×V) |
| Weight : | 2.90Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 433.44×270.9 mm (H×V) |
| Bezel Area : | 438.4×275.9 mm (H×V) |
| Outline Dimension : | 459.4×296.4 mm (H×V) |
| Outline Depth : | 22.8/23.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

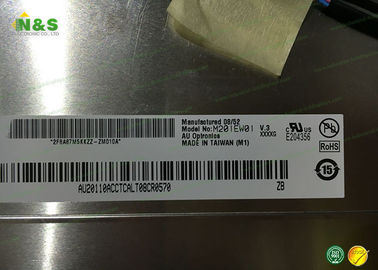

M201EW01 V3 AUO LCD Panel Picture
