Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
---|---|---|---|
Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
Active Area: | 101.568×76.176 Mm | Outline: | 117.35×88.43×15 Mm |
High Light: | black and white lcd display,lcd panel screen |

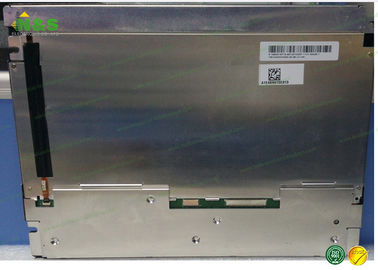

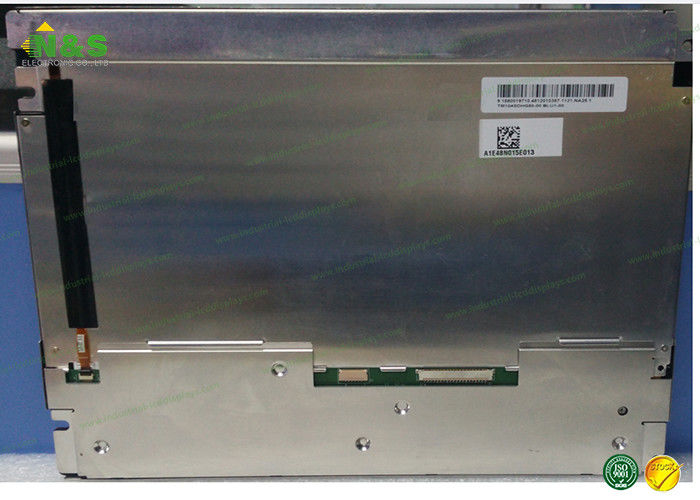

TM104SDHG50-00 Tianma LCD Displays Tianma 10.4" LCM 800×600 500 500:1 262K/16.7M WLED LVDS
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TM060SDH01 | Tianma | 6.0" | 800×600 |
TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
TM12864LCAWG | Tianma | 2.2" | 128×64 |
TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
TM104SDHG50-00 Information
Panel Size : | 10.4 |
Dot Resolution : | 640(RGB)×480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 160 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0529×0.1587 mm (H×V) |
Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
Weight : | 86±4.3g |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 101.568×76.176 mm (H×V) |
Outline Dimension : | 117.35×88.43 mm (H×V) |
Outline Depth : | 7.9/15.0 (Typ./Max.) mm |
Holes & Brackets : | Face mounting holes (4 pcs) on up, down, right slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Color Gamut : | 50% NTSC (CIE1931) |
Response Time : | 20 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 12 o'clock |
White color Chromaticity : | Wx:0.300; Wy:0.313 |
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
