Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White |
| Active Area: | 70.08×52.56 Mm | Outline: | 76.9×63.9×6 Mm |
| High Light: | black and white lcd display,lcd panel screen |
||

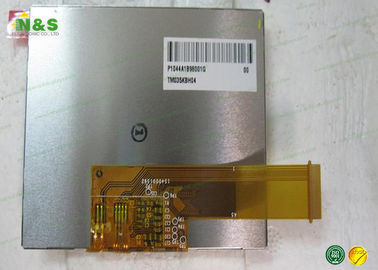

3.5 inch TM035KBH04 Tianma LCD Displays Tianma with 70.08×52.56 mm Active Area
TM035KBH04 Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 40g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.08×54.56 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.45/6.0 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M () |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.288; Wy:0.312 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
