Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 165×104×9.45 Mm |
| High Light: | auo display panel,auo lcd display |
||

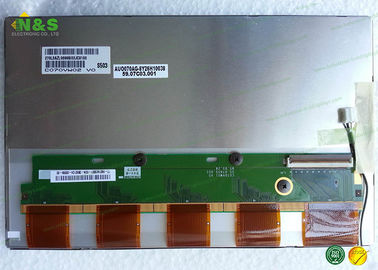

Normally Black C070VW02 V0 AUO LCD Panel 7.0 inch LCM 800×480 with 152.4×91.44 mm Active Area
C070VW02 V0 Basic Information
| Panel Model | C070VW02 V0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | C070VW02 V.0 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Remarks | High power LED backlight, COG mounting technology |
C070VW02 V0 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 150g |
| Surface | Antiglare (Haze 5%) |
| Active Area | 152.4×91.44 mm (H×V) |
| Bezel Area | 154.6×93.64 mm (H×V) |
| Outline Dimension | 165×104 mm (H×V) |
| Outline Depth | 5.5/9.45 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
