Product Details:
|
| Surfaces: | Antiglare, Hard Coating (3H) | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | CMOS (1 Ch, 6-bit) , 33 Pins |
| High Light: | auo display panel,auo lcd display |
||
| Panel Size : | 5.7 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 150/165g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 118.2×89.4 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 12.3/12.8 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting Pole (4-Ф2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 550 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

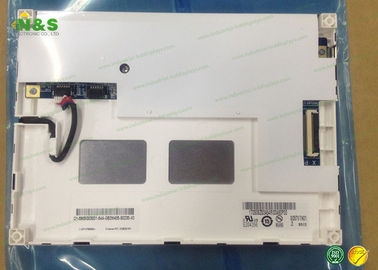

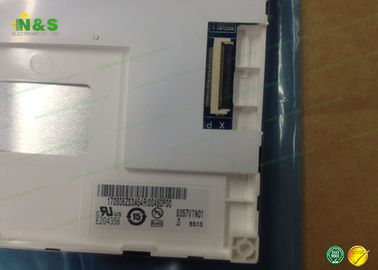

G057VTN01.1 Picture
