Product Details:
|
| Panel Brand: | AUO | Panel Model: | G101EVN01.1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | MVA, Normally Black, Transmissive |
| High Light: | auo lcd screen,auo lcd display |
||
G101EVN01.1 AUO lcd panel replacement / 10.1 lcd display for Industrial Application
G101EVN01.1 Product Information
| Panel Brand : | AUO |
| Panel Model : | G101EVN01.1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 216.96×135.6 mm |
| Outline : | 229.46×149.2×6.21 mm |
| Surface : | Hard coating (3H), Reflection 1.5% (Max.) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 187g (Max.) |
| Surface : | Hard coating (3H), Reflection 1.5% (Max.) |
| Active Area : | 216.96×135.6 mm (H×V) |
| Bezel Area : | 220.36×139.1 mm (H×V) |
| Outline Dimension : | 229.46×149.2 mm (H×V) |
| Outline Depth : | 3.0/6.21 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

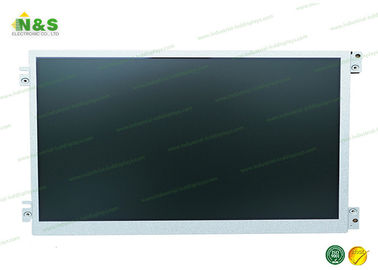

G101EVN01.1 Picture
