Product Details:
|
| Model:: | TM070JDHP01 | MFG:: | Tianma LCD Displays |
|---|---|---|---|
| Resolution :: | 1280(RGB)×800 , WXGA | Brightness :: | 420 Cd/m² (Typ.) |
| High Light: | black and white lcd display,lcd panel screen |
||

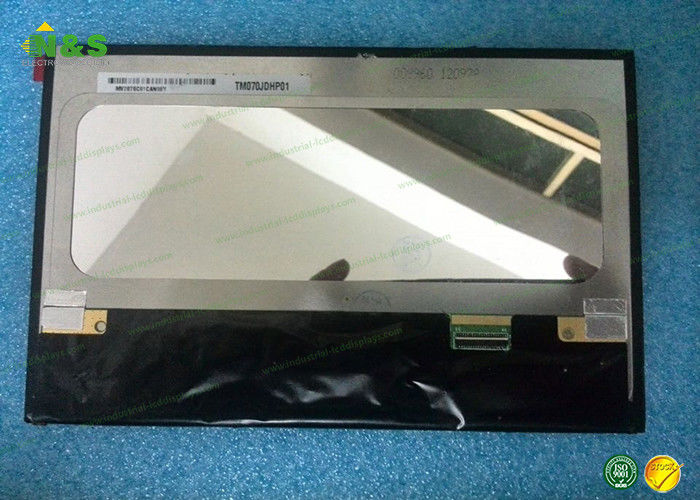

TIANMA 7.0 inch HD TFT LCD Screen TM070JDHP01 WXGA 1280(RGB)*800
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 2~10 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
| Panel Brand : | TIANMA |
| Panel Model : | TM070JDHP01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | SIP, Normally Black, Transmissive |
| Active Area : | 149.76×93.6 mm |
| Outline : | 161×107×4.4 mm |
| Surface : | Antireflection |
| Brightness : | 420 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 9S2P WLED [8S6P: 8 Serial, 6 Parallel] Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 39 pins |
| Input Voltage : | 3.3V (Typ.) |
