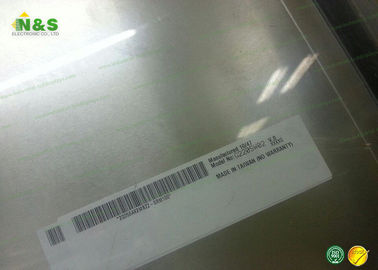

LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution

LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution
LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution

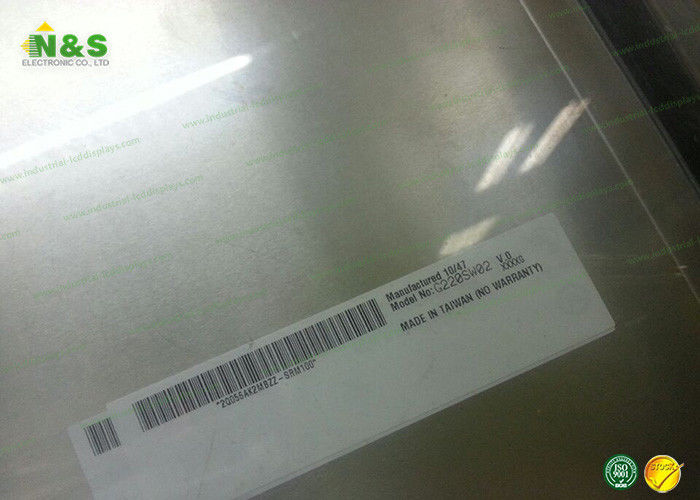

Large Image :  LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G220SW02 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution

Description
Contrast Ratio: 1000:1 (Typ.) Panel Size: 22.0 Inch
Resolution: 1680(RGB)×1050 , WSXGA+ Surface: Glare (Haze 0%), Hard Coating (3H)
Frequency: 60Hz Signal Interface: LVDS (2 Ch, 8-bit) , 30 Pins
High Light:

auo display panel

,

auo lcd display



LVDS G220SW02 V0 22.0 inch auo display panel 1680 ×1050 Resolution



Panel Size : 22.0 inch
Dot Resolution : 1680(RGB)×1050 (WSXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 90 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.094×0.282 mm (H×V)
Pixel Pitch : 0.282×0.282 mm (H×V)
Weight :
3.50Kgs (Typ.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 473.76×296.1 mm (H×V)
Bezel Area : 477.7×300.1 mm (H×V)
Outline Dimension : 493.7×320.1 mm (H×V)
Outline Depth : 23.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without





Lamp Position :
Edge light type
Lamp Type :
WLED
Lamp Amount : 9S6P
Lamp Shape : 6 strings
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 31.5/36V (Typ./Max.)
Lamp Current : 70/120mA (Typ.)(2D/3D)
Lamps Power Consumption : 13.2/22.8W (Typ)(2D/3D)
Interface Type :
Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
  HRS DF14H-20P-1.25H(56) 1.25 mm 20 pins 1 pcs
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board :
12.0/12.6V (Typ./Max.)
Lamp Driver Board : 1.2/2.4A (Typ.)(2D/3D)
Lamp Driver Board : 14.4/28.8W (Typ.)(2D/3D)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
